Lasercut Hypotube, Nitinol, 0.025” OD, 3.0” Length, 0.0008” Ring, 0.0012” Uncut (2x), 0.0007” Kerf, Quantity 3/Bag
Product Description

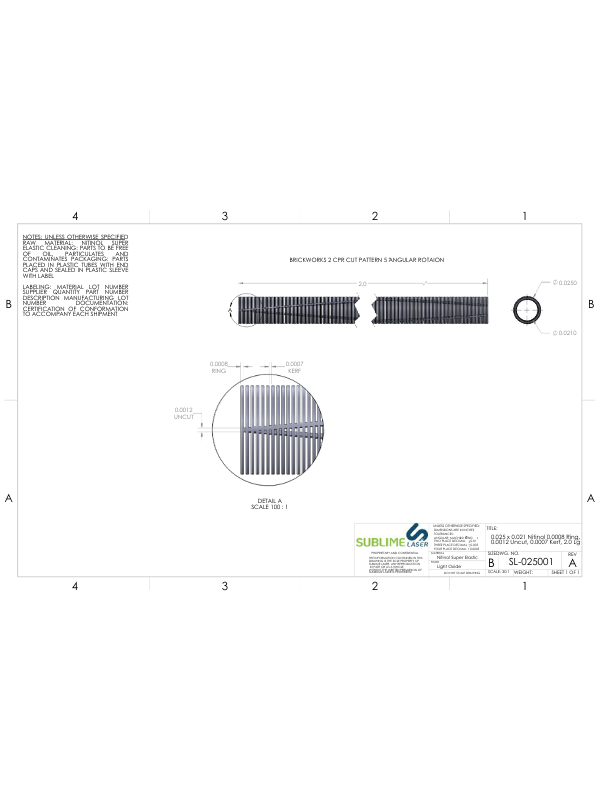

Type: Femtosecond Lasercut Hypotube
Design Pattern: Brickworks
Material: Nitinol, Superelastic
Outside Diameter (OD): 0.025 inches
Inside Diameter(ID): 0.021 inches
Wall Thickness: 0.002 inches
Overall Length: 3.0 inches
Ring Width: 0.0008 inches
Uncut Width: 0.0012 inches
Cuts per Revolution: 2
Kerf Width: 0.0007 inches
Quantity: 3 per bag
This part is made from a nitinol tube. It was machined by a femtosecond laser which creates almost no heat effected zone (HAZ) into the part retaining the original nitinol material properties. The part design is a series of rings connected by two uncut portions on each side of the ring to yield a structure that is very flexible in bending yet transmits tremendous torque. The uncut portions are rotated 5 degrees along its length to help deliver smooth torque transmission. Handle this part with care - in some cases it can cause mild euphoria and unpredictable interjections.
